HUSQVARNA 폴리싱장비
BMG–2200
BMG-2200
Ø2.200 mm (3 x Ø780 mm)
3.035 kg incl. grinding heads
Grinding weight: 2.075 kg
(Weight of machine when grinding heads are on the surface)
3.450 mm | 2.250 mm | 1.990 mm
400 - 1.200 rpm
Total power: 62 kW | 400 V | 50 Hz | 125 A | Three phase
Grinding heads: 3 x 15 kW
Dust collector: 1 x 13 kW
Maintenance: 400 V | 50 Hz | 16 A | Three phase
High quality filters | Automatic pulse cleaning | HEPA 14 filter
Endless bagging system
Ride on | 0 - 24 m/min
Concrete | Asphalt | Stone | Marble | Granite | Terazzo
Ø2.200 mm (3 x Ø780 mm)
3.035 kg incl. grinding heads
Grinding weight: 2.075 kg
(Weight of machine when grinding heads are on the surface)
3.450 mm | 2.250 mm | 1.990 mm
400 - 1.200 rpm
Total power: 62 kW | 400 V | 50 Hz | 125 A | Three phase
Grinding heads: 3 x 15 kW
Dust collector: 1 x 13 kW
Maintenance: 400 V | 50 Hz | 16 A | Three phase
High quality filters | Automatic pulse cleaning | HEPA 14 filter
Endless bagging system
Ride on | 0 - 24 m/min
Concrete | Asphalt | Stone | Marble | Granite | Terazzo
HTC 950RX
.lay-table{ display:table; width:100%; } .t_head{ font-size: 14px; padding: 10px 10px; text-align: center; background-color: #ececec; } .bus1 .t_line{ display:table-row; color: #333; background-color: #ececec; } .bus1 .t_line.odd{ background-color:#fff; } .bus1 .t_line span{ display:table-cell; font-size: 12px; padding: 10px 10px; width:50%; } .bus1 .t_line span.colspan{ display:block; } .bus2 dt{ font-weight:bold; font-size:16px; text-align:center; margin-bottom:20px; } .bus2 dd{ margin-bottom:5px; }
HTC 950RX
넓은 면적시공에 완벽한 장비로서 무선 리모컨으로 작동합니다.
무선 리모컨 사용 시 장비가 가동되는 동안에도 집진기의 분진을 비우고, 케이블 정리 등의 손쉬운 작업을 할 수 있어 효율적입니다.
내장된 배터리로 전후좌우 조종이 가능하여 장비의 이동이 쉽고 별도의 바퀴를 장착하여 그라인딩 헤드의 손상 없이 장비를 이동할 수 있습니다.• 넓은 면적 시공에 적합• 무선 리모컨으로 작동• 밸런스가 잘 맞는 네 개의 디스크 시스템• 손쉬운 무게 배분 구조로 그라인딩 압력 조절• 내장된 배터리 동력을 이용하여 손쉬운 운반 및 이동 가능• 신기술의 그라인딩 디스크로 유지보수가 용이하고 긴 수명• 무선 리모컨 작동으로 진동파손의 최소화
HTC 950RX길이(Length) 1347mm넓이(Width) 985mm높이(Height) 1287mm무게(Weight) 600kg모터 출력(Motor output) 15kW소비전력(Power consumption) 32 Amp전압(Voltage) 3x400v주파수(Frequency) 50Hz연마 압력(Grinding pressure) 280-300-400kg회전속도(Revolution speed) 450-1400 r.p.m디스크(Grinding discs) 4x270mm헤드 넓이(Grinding width) 920mm물탱크 (Water tank) 10L분무 냉각 시스템(Mist Cooler System) 있음추천 집진기 (Recommended Dust Extraction System)) HTC 80iD리모콘 주파수(Frequency radio Control))433, 100 – 434,750MHz제어 전류(Control current) 24V배터리(Battery) 납축전지
.lay-table{ display:table; width:100%; } .t_head{ font-size: 14px; padding: 10px 10px; text-align: center; background-color: #ececec; } .bus1 .t_line{ display:table-row; color: #333; background-color: #ececec; } .bus1 .t_line.odd{ background-color:#fff; } .bus1 .t_line span{ display:table-cell; font-size: 12px; padding: 10px 10px; width:50%; } .bus1 .t_line span.colspan{ display:block; } .bus2 dt{ font-weight:bold; font-size:16px; text-align:center; margin-bottom:20px; } .bus2 dd{ margin-bottom:5px; }
HTC 950RX
넓은 면적시공에 완벽한 장비로서 무선 리모컨으로 작동합니다.
무선 리모컨 사용 시 장비가 가동되는 동안에도 집진기의 분진을 비우고, 케이블 정리 등의 손쉬운 작업을 할 수 있어 효율적입니다.
내장된 배터리로 전후좌우 조종이 가능하여 장비의 이동이 쉽고 별도의 바퀴를 장착하여 그라인딩 헤드의 손상 없이 장비를 이동할 수 있습니다.• 넓은 면적 시공에 적합• 무선 리모컨으로 작동• 밸런스가 잘 맞는 네 개의 디스크 시스템• 손쉬운 무게 배분 구조로 그라인딩 압력 조절• 내장된 배터리 동력을 이용하여 손쉬운 운반 및 이동 가능• 신기술의 그라인딩 디스크로 유지보수가 용이하고 긴 수명• 무선 리모컨 작동으로 진동파손의 최소화
HTC 950RX길이(Length) 1347mm넓이(Width) 985mm높이(Height) 1287mm무게(Weight) 600kg모터 출력(Motor output) 15kW소비전력(Power consumption) 32 Amp전압(Voltage) 3x400v주파수(Frequency) 50Hz연마 압력(Grinding pressure) 280-300-400kg회전속도(Revolution speed) 450-1400 r.p.m디스크(Grinding discs) 4x270mm헤드 넓이(Grinding width) 920mm물탱크 (Water tank) 10L분무 냉각 시스템(Mist Cooler System) 있음추천 집진기 (Recommended Dust Extraction System)) HTC 80iD리모콘 주파수(Frequency radio Control))433, 100 – 434,750MHz제어 전류(Control current) 24V배터리(Battery) 납축전지
PG 8 XR/DR

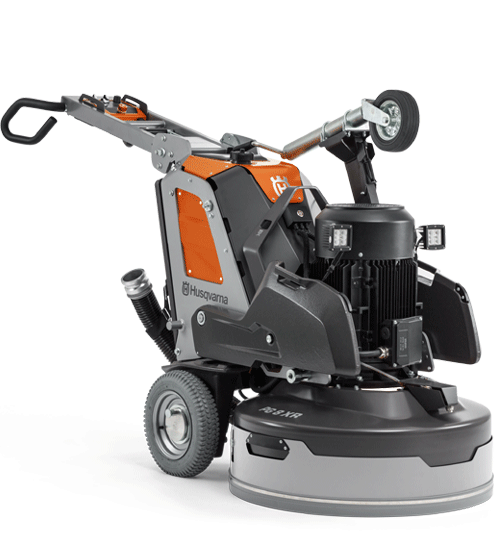

PG 8 XR
PG 8 XR전원15kW전압400 V정격 전류30 A전압공급3 PH연삭 폭
800 mm연삭 디스크4x270 mm연삭 압력max 369kg연삭 디스크 속도420-1176 rpm회전방향4개의 디스크가 두 쌍씩 다른 방향으로 회전사이즈(LxWxH)1353x838x1138 mm중량645 kg원격 제어 기능 유/무유
PG 8 DR
PG 8 DR전원16.5kW전압400 V정격 전류30 A전압공급3 PH연삭 폭
800 mm연삭 디스크3x270 mm연삭 압력max 380kg연삭 디스크 속도420-1176 rpm회전방향연삭 디스크와 유성 헤드 모두 독립적인
FWD/REV 방향 제어사이즈(LxWxH)1353x838x1138 mm중량661 kg원격 제어 기능 유/무유
PG 8 XR
PG 8 XR전원15kW전압400 V정격 전류30 A전압공급3 PH연삭 폭
800 mm연삭 디스크4x270 mm연삭 압력max 369kg연삭 디스크 속도420-1176 rpm회전방향4개의 디스크가 두 쌍씩 다른 방향으로 회전사이즈(LxWxH)1353x838x1138 mm중량645 kg원격 제어 기능 유/무유
PG 8 DR
PG 8 DR전원16.5kW전압400 V정격 전류30 A전압공급3 PH연삭 폭
800 mm연삭 디스크3x270 mm연삭 압력max 380kg연삭 디스크 속도420-1176 rpm회전방향연삭 디스크와 유성 헤드 모두 독립적인
FWD/REV 방향 제어사이즈(LxWxH)1353x838x1138 mm중량661 kg원격 제어 기능 유/무유
PG 6 XR/DR
PG 6 XR
PG 6 XR전원7.5kW전압400 V정격 전류16 A전압공급3 PH연삭 폭
600 mm연삭 디스크4x230 mm연삭 압력max. 264 kg연삭 디스크 속도441-1176 rpm회전방향4개의 디스크가 두 쌍씩 다른 방향으로 회전사이즈(LxWxH)1225x638x1142 mm중량495 kg원격 제어 기능 유/무유
PG 6 DR
PG 6 DR전원12.5kW전압400 V정격 전류30 A전압공급3 PH연삭 폭
600 mm연삭 디스크3x230 mm연삭 압력330 kg연삭 디스크 속도441-1176 rpm회전방향연삭 디스크와 유성 헤드 모두 독립적인
FWD/REV 방향 제어사이즈(LxWxH)1271x678x1142 mm중량591 kg원격 제어 기능 유/무유
PG 6 XR
PG 6 XR전원7.5kW전압400 V정격 전류16 A전압공급3 PH연삭 폭
600 mm연삭 디스크4x230 mm연삭 압력max. 264 kg연삭 디스크 속도441-1176 rpm회전방향4개의 디스크가 두 쌍씩 다른 방향으로 회전사이즈(LxWxH)1225x638x1142 mm중량495 kg원격 제어 기능 유/무유
PG 6 DR
PG 6 DR전원12.5kW전압400 V정격 전류30 A전압공급3 PH연삭 폭
600 mm연삭 디스크3x230 mm연삭 압력330 kg연삭 디스크 속도441-1176 rpm회전방향연삭 디스크와 유성 헤드 모두 독립적인
FWD/REV 방향 제어사이즈(LxWxH)1271x678x1142 mm중량591 kg원격 제어 기능 유/무유
PG 5
.lay-table{ display:table; width:100%; } .t_head{ font-size: 14px; padding: 10px 10px; text-align: center; background-color: #ececec; } .bus1 .t_line{ display:table-row; color: #333; background-color: #ececec; } .bus1 .t_line.odd{ background-color:#fff; } .bus1 .t_line span{ display:table-cell; font-size: 12px; padding: 10px 10px; width:50%; } .bus1 .t_line span.colspan{ display:block; } .bus2 dt{ font-weight:bold; font-size:16px; text-align:center; margin-bottom:20px; } .bus2 dd{ margin-bottom:5px; }
PG 5
PG 5 4kW 길이(Length) 907mm
넓이(Width) 562mm
높이(Height) 721mm
무게(Weight) 183kg 모터 출력(Motor output) 4kW
소비전력(Power consumption) 16A
전압(Voltage) 1x200-240V
연마 압력(Grinding pressure)
max. 125kg 회전속도(Revolution speed)
359-1176rpm 디스크(Grinding discs)
3x230mm
헤드 넓이(Grinding width)
515mm
분무 냉각 시스템(Mist Cooler System) 있음
물탱크 2.9L
.lay-table{ display:table; width:100%; } .t_head{ font-size: 14px; padding: 10px 10px; text-align: center; background-color: #ececec; } .bus1 .t_line{ display:table-row; color: #333; background-color: #ececec; } .bus1 .t_line.odd{ background-color:#fff; } .bus1 .t_line span{ display:table-cell; font-size: 12px; padding: 10px 10px; width:50%; } .bus1 .t_line span.colspan{ display:block; } .bus2 dt{ font-weight:bold; font-size:16px; text-align:center; margin-bottom:20px; } .bus2 dd{ margin-bottom:5px; }
PG 5
PG 5 4kW 길이(Length) 907mm
넓이(Width) 562mm
높이(Height) 721mm
무게(Weight) 183kg 모터 출력(Motor output) 4kW
소비전력(Power consumption) 16A
전압(Voltage) 1x200-240V
연마 압력(Grinding pressure)
max. 125kg 회전속도(Revolution speed)
359-1176rpm 디스크(Grinding discs)
3x230mm
헤드 넓이(Grinding width)
515mm
분무 냉각 시스템(Mist Cooler System) 있음
물탱크 2.9L
PG 510
.lay-table{ display:table; width:100%; } .t_head{ font-size: 14px; padding: 10px 10px; text-align: center; background-color: #ececec; } .bus1 .t_line{ display:table-row; color: #333; background-color: #ececec; } .bus1 .t_line.odd{ background-color:#fff; } .bus1 .t_line span{ display:table-cell; font-size: 12px; padding: 10px 10px; width:50%; } .bus1 .t_line span.colspan{ display:block; } .bus2 dt{ font-weight:bold; font-size:16px; text-align:center; margin-bottom:20px; } .bus2 dd{ margin-bottom:5px; }
PG 510• 3상/ 단상 그라인더• 3헤드 구조• 넓은 바닥 연마에 효율적• PG 450 모델에 비해 더욱 강력한 성능• 이동시 분리 가능• EZchange Tool 적용
PG 510길이(Length) -mm넓이(Width) -mm높이(Height) -mm무게(Weight) 133kg모터 출력(Motor output) 4kW소비전력(Power consumption) 9 Amp전압(Voltage) 3x400V주파수(Frequency) 50Hz연마 압력(Grinding pressure) 79kg회전속도(Revolution speed) 560 r.p.m디스크(Grinding discs) 3x230mm헤드 무게(Grinding head weight) -kg헤드 넓이(Grinding width) 515 mm추천 집진기 (Recommended Dust Extraction System)) HTC D30 / D20
.lay-table{ display:table; width:100%; } .t_head{ font-size: 14px; padding: 10px 10px; text-align: center; background-color: #ececec; } .bus1 .t_line{ display:table-row; color: #333; background-color: #ececec; } .bus1 .t_line.odd{ background-color:#fff; } .bus1 .t_line span{ display:table-cell; font-size: 12px; padding: 10px 10px; width:50%; } .bus1 .t_line span.colspan{ display:block; } .bus2 dt{ font-weight:bold; font-size:16px; text-align:center; margin-bottom:20px; } .bus2 dd{ margin-bottom:5px; }
PG 510• 3상/ 단상 그라인더• 3헤드 구조• 넓은 바닥 연마에 효율적• PG 450 모델에 비해 더욱 강력한 성능• 이동시 분리 가능• EZchange Tool 적용
PG 510길이(Length) -mm넓이(Width) -mm높이(Height) -mm무게(Weight) 133kg모터 출력(Motor output) 4kW소비전력(Power consumption) 9 Amp전압(Voltage) 3x400V주파수(Frequency) 50Hz연마 압력(Grinding pressure) 79kg회전속도(Revolution speed) 560 r.p.m디스크(Grinding discs) 3x230mm헤드 무게(Grinding head weight) -kg헤드 넓이(Grinding width) 515 mm추천 집진기 (Recommended Dust Extraction System)) HTC D30 / D20
HTC 270EG
.lay-table{ display:table; width:100%; } .t_head{ font-size: 14px; padding: 10px 10px; text-align: center; background-color: #ececec; } .bus1 .t_line{ display:table-row; color: #333; background-color: #ececec; } .bus1 .t_line.odd{ background-color:#fff; } .bus1 .t_line span{ display:table-cell; font-size: 12px; padding: 10px 10px; width:50%; } .bus1 .t_line span.colspan{ display:block; } .bus2 dt{ font-weight:bold; font-size:16px; text-align:center; margin-bottom:20px; } .bus2 dd{ margin-bottom:5px; }
HTC 270 EGHTC 270 EG는 엣지 그라인더로서 코너, 가장자리 폴리싱 작업시 가장 효율적인 성능을 제공합니다.• 그라인딩 헤드 높이 10cm• 그라인딩 헤드 좌우전환• 무게추를 이용한 그라인딩 압력 조절 가능• 인체 공학적 디자인• Floating Cover를 이용한 분진 흡수• EZchange Tool 적용
HTC 270 EG길이(Length) 1030mm넓이(Width) 490mm높이(Height) 830mm무게(Weight) 103kg모터 출력(Motor output) 2,2kW소비전력(Power consumption) 10 Amp전압(Voltage) 1x230V주파수(Frequency) 50Hz연마 압력(Grinding pressure) 36kg회전속도(Revolution speed) 460-1220 r.p.m디스크(Grinding discs) 1x270mm헤드 무게(Grinding head weight) 55kg헤드 넓이(Grinding width) 270 mm추천 집진기 (Recommended Dust Extraction System))HTC GL 25 DHTC GL 35 DHTC GL 40 D
.lay-table{ display:table; width:100%; } .t_head{ font-size: 14px; padding: 10px 10px; text-align: center; background-color: #ececec; } .bus1 .t_line{ display:table-row; color: #333; background-color: #ececec; } .bus1 .t_line.odd{ background-color:#fff; } .bus1 .t_line span{ display:table-cell; font-size: 12px; padding: 10px 10px; width:50%; } .bus1 .t_line span.colspan{ display:block; } .bus2 dt{ font-weight:bold; font-size:16px; text-align:center; margin-bottom:20px; } .bus2 dd{ margin-bottom:5px; }
HTC 270 EGHTC 270 EG는 엣지 그라인더로서 코너, 가장자리 폴리싱 작업시 가장 효율적인 성능을 제공합니다.• 그라인딩 헤드 높이 10cm• 그라인딩 헤드 좌우전환• 무게추를 이용한 그라인딩 압력 조절 가능• 인체 공학적 디자인• Floating Cover를 이용한 분진 흡수• EZchange Tool 적용
HTC 270 EG길이(Length) 1030mm넓이(Width) 490mm높이(Height) 830mm무게(Weight) 103kg모터 출력(Motor output) 2,2kW소비전력(Power consumption) 10 Amp전압(Voltage) 1x230V주파수(Frequency) 50Hz연마 압력(Grinding pressure) 36kg회전속도(Revolution speed) 460-1220 r.p.m디스크(Grinding discs) 1x270mm헤드 무게(Grinding head weight) 55kg헤드 넓이(Grinding width) 270 mm추천 집진기 (Recommended Dust Extraction System))HTC GL 25 DHTC GL 35 DHTC GL 40 D
